iDrive terminal block?

Hi,

I'm trying to find out what pins 1 and 3 on the iDrive terminal block do. They show a switch so wondering if that's for a hardwired wall plate/switch but I can't find any documentation on it or pins 4 and 5 (light?). The installation manual only mentions pins 1 and 2 for the photoelectric sensors.

I received a home automation garage door opener module for Christmas and it needs to connect to the hardwired switch terminals.

Thanks!

Scott

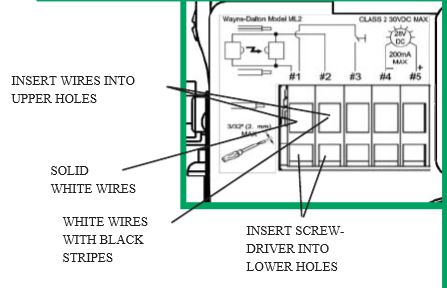

Attached Image:


Scott Herron
Wed, 02 Jan 2019 10:31:39 -0800

Did you figure it out? I'm trying to do the same.

Tim Benroeck
Sat, 02 Nov 2019 14:17:23 -0700
