HDMI Cable Pin-Out

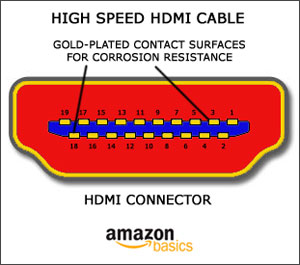

While looking for HDMI cables on Amazon, I found a nice HDMI pin numbering diagram from this "AmazonBasics High Speed HDMI Cable (9.8 Feet / 3.0 Meters) [Amazon Frustration-Free Packaging]" page. I've attached below for reference. Unfortunately, it doesn't show any pin specifications. So if anyone has that, please post it.

Attached Image:

High Speed HDMI Cable Pin Numbering (Male).jpg

Chieh Cheng
Fri, 20 Nov 2009 20:41:24 +0000

Found the HDMI connector pin-outs:
http://www.practical-home-theater-guide.com/hdmi-connectors- . . .

Chieh Cheng
Fri, 04 Dec 2009 18:09:48 +0000
