Pantech C3 Data and Charging Port Pins

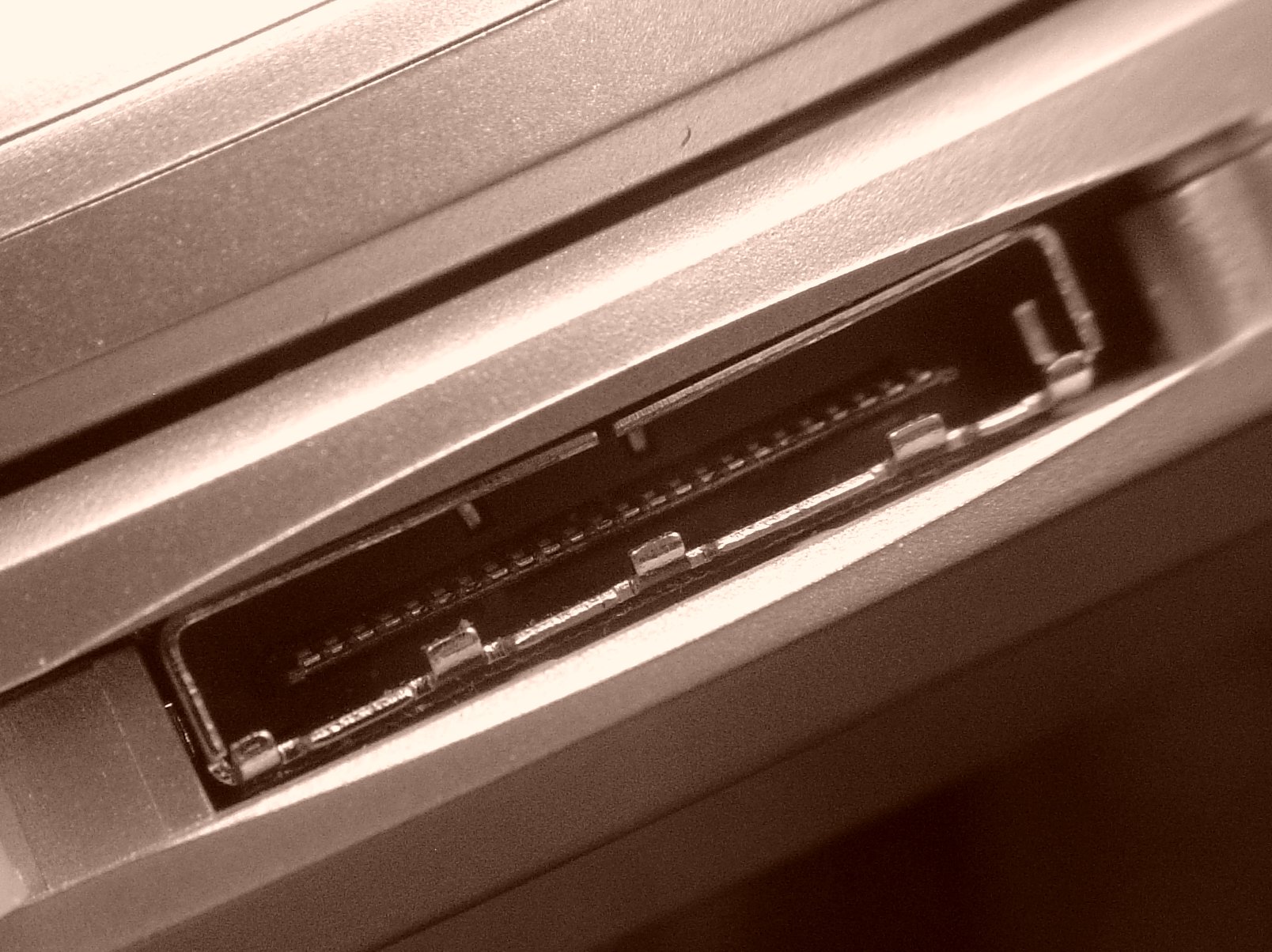

I recently got the Pantech C3 camera phone. This phone is the successor to the Pantech C300. The following photographs shows the pins for the data and charging port on the phone. I suspect the port is exactly the same on the C3 and the C300.

Attached Image:

Pantech C3 Charging and Data Port.jpg

Chieh Cheng
Fri, 02 Mar 2007 22:51:32 -0800

Pantech PTA-5070C2US
Input: 100-240V 50/60Hz 0.3A
Output: 5.0V 700mA
Efficient Level IV

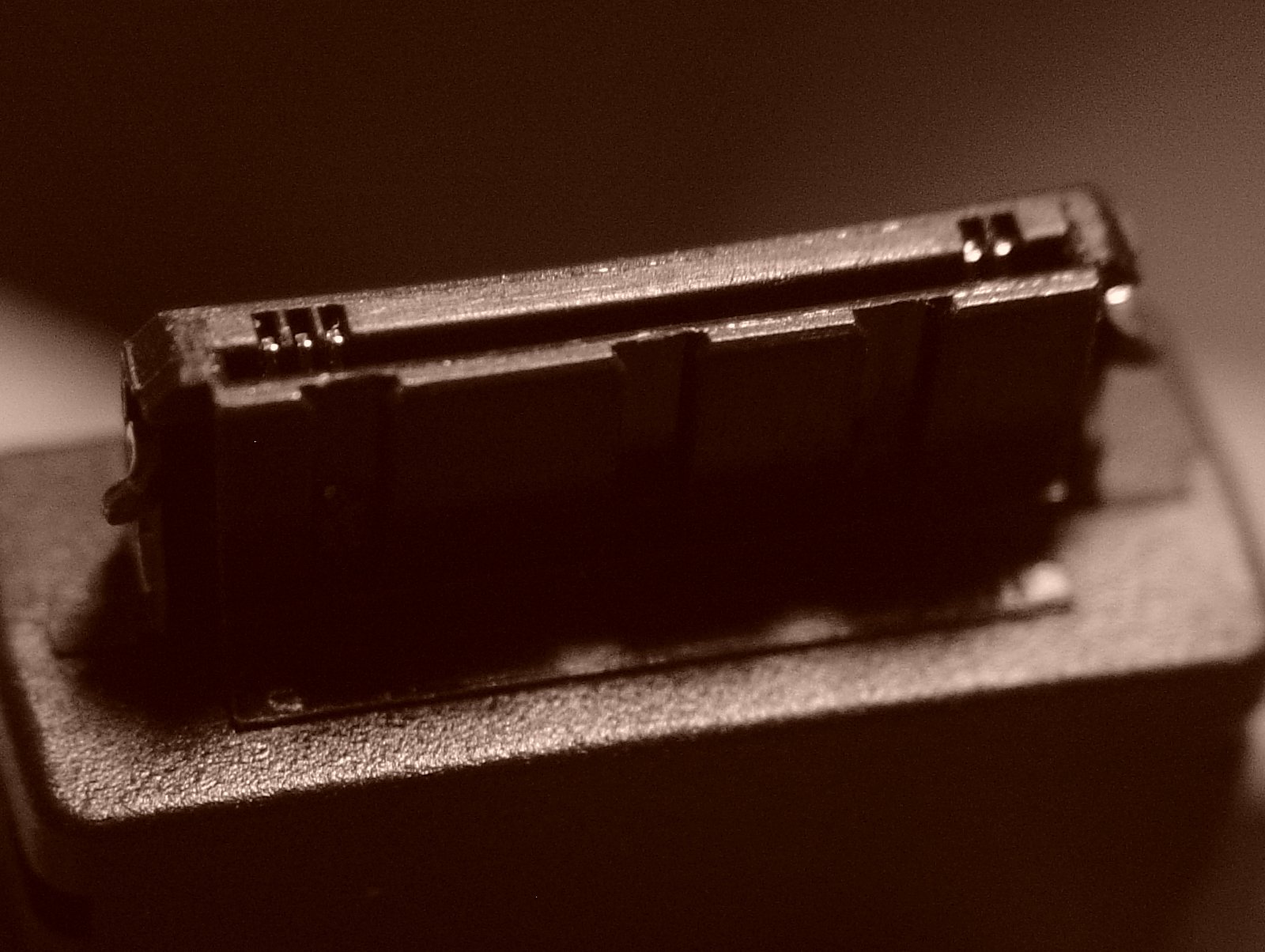

The following photographs shows the pins on the charging cable. It's hard to tell if the three pins on the left and the two pins on the right starts at the first and last pin of the data port; they seem to.

Attached Image:

Pantech C3 Charger Cable Pins.jpg

Chieh Cheng
Fri, 02 Mar 2007 22:54:33 -0800

hey man my computer want let me view the pics, could you e-mail them to me, i have a problem with my phone and need the pin outs, for the data lines, or state a place to get them, thank you,,

([email protected]) my e-mail

DH
Tue, 08 Jul 2008 15:18:20 +0000

I used to have a Pantech phone in 2007, but then my psycho path ex-boyfriend broke it; so then I bought me another one at a Flea Market after I broke up with me ex. Then ever since AT&T butted in, I disliked the services, bill charges and plans. I would always kept my pets pictures in there. I would take pictures and then delete them assuming/planning to take better pictures of my cat some day. After having a lot of problems with AT&T I turned to Verizon,2 years later. Then early spring 2010, my cat passed away so strangely, and I regret deleting even the not so good pictures of my cat and her babies, for I could not recover them since I'm with Verizon now, BUT I STILL HAVE MY PANTECH PHONE. Although I do remember throwing away my Pantech charger away ACCIDENTALLY, is there any possible way recovering those photos even though I'm not with AT&T and without a charger?????? PLEASE HELP PLEASE, help me please. Can I charge it a ghetto way? ANYTHING?????

angelica cruz
Sun, 08 Aug 2010 20:34:51 +0000
