HP Pavilion Entertainment Notebook PC dv1227us Disassembly

DVD+-RW Drive Removal

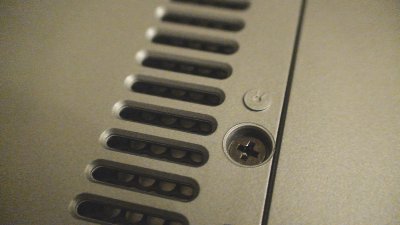

The CD/DVD drive on the HP dv1227us notebook computer is extremely easy to remove. Simply unscrew the screw marked with the slotted donut as shown in the picture below. Then pull the drive out. It's that easy.

Attached Image:

Optical Drive Fastener.JPG

Chieh Cheng
Fri, 17 Nov 2006 01:44:26 -0800

Hard Drive Removal

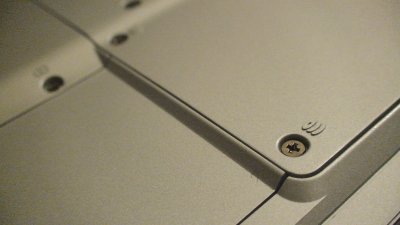

The hard drive is located under the panel on the bottom right hand side of the notebook (when viewed from the bottom). To remove it, first remove the two screws that are marked with the triple disc symbols (see photo below).

Attached Image:

Hard Drive Panel Screws.JPG

Chieh Cheng
Fri, 17 Nov 2006 01:49:58 -0800

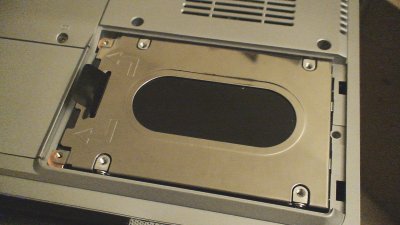

After removing the panel covering the hard drive, pull the black tab upward (see photo below). The hard drive will be removed with the metal bracet.

Attached Image:

Hard Drive.JPG

Chieh Cheng
Fri, 17 Nov 2006 01:54:32 -0800

Accessing the Memory Bay

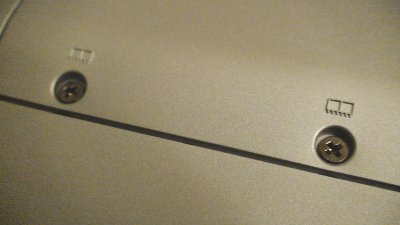

The dv1227us notebook has two memory slots. By default, they are taken up by two 256 MB, PC2700, 333 MHz, DDR memory modules. You can upgrade them with larger memory modules. To gain access to the memory bay, find two screws with the memory chip symbol next to them (see photo below). Remove the two screws and lift up the panel.

Attached Image:

Memory Bay Panel Screws.JPG

Chieh Cheng
Fri, 17 Nov 2006 02:00:14 -0800

Accessing the Mini-PCI Bay

The HP dv1227us has a mini-PCI bay. By default, the slot is taken up by the 802.11g wireless network adapter. Because there isn't many other mini-PCI cards on the market, accessing this bay is not a real useful exercise.

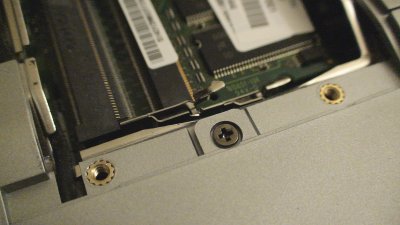

Nevertheless, With the memory bay panel off, there is a screw located next to the memory modules (see photo below). Remove this screw and the mini-PCI bay panel can be lifted up easily.

Attached Image:

Mini-PCI Panel Screw.JPG

Chieh Cheng
Fri, 17 Nov 2006 02:10:08 -0800
